Patient Room Typology — Inpatient Room Design Deep-Dive in India

The patient room is the fundamental architectural unit of every hospital. It is where the patient spends the great majority of their stay, where the family stays through the long Indian visiting tradition, where the night nurse makes hourly rounds, where the morning ward round assesses progress, where the examining doctor performs procedures, where the dying patient says goodbye. A 200-bed hospital is, in practical operational terms, 200 small rooms repeated with minor specialty variations — and the quality of those 200 rooms determines the quality of the hospital experience for every patient and family that passes through. The architect who designs the patient room well, and then repeats it consistently, builds a hospital that is loved. The architect who under-designs the patient room produces a hospital that may be clinically capable but is humanly cold — and the cold is repeated 200 times every day.

This guide is a facility-type deep-dive in the Studio Matrx healthcare architecture series. It assumes the reader has read the pillar regulatory reference, the hospital design roadmap, and is familiar with NABH 5th Edition patient-centred design principles. Here we focus on what is specific to the patient room — the five design decisions that resolve every brief, the single vs twin vs cohort comparison, the same-handed vs mirrored debate that has measurable medical-error implications, the inboard vs outboard bathroom debate that shapes patient view and staff observation, the family attendant accommodation that distinguishes Indian patient rooms from Western, the headwall services as the most service-dense wall in any hospital, the acuity-adaptable room as a contemporary innovation, the failure modes that recur across Indian projects, and the pre-design audit framework.

The position this guide takes is specific: the patient room should be designed with the same architectural seriousness as the OT or the ICU. Cost-per-bed pressure typically pushes toward smaller rooms, more cohort beds, fewer family-attendant provisions, generic headwall services, and ward designs that are repeated without working through the five decisions thoroughly. The architect's task is to resist this pressure where it produces clinically and culturally inadequate rooms, and to insist on the additional commitment — the family day-bed, the inboard bathroom for view, the same-handed layout for workflow consistency, the proper headwall services for life safety — even when the brief is silent. The patient remembers the room. Design it for that.

"The patient room is the smallest unit of architectural mercy. Get it right, and the hospital absorbs every patient as a person; get it wrong, and the hospital reduces every person to a patient." — Dr. Roger Ulrich (b. 1946), environmental psychologist and pioneer of evidence-based healthcare design, paraphrased from a 2008 lecture

"India's family attendant tradition is the most distinctive cultural element of Indian healthcare. The architect who designs against it imports an alien model that no patient and no family wants. The architect who designs for it produces a room that the family remembers gratefully." — Ar. Sandeep Singh (b. 1968), Delhi healthcare architect, paraphrased

---

1. Why Patient Room is its Own Typology

Six characteristics make the patient room distinct from other healthcare typologies:

• It is the most-repeated room in the hospital. A 200-bed hospital has 150–180 patient rooms (after deducting OT, ED, ICU). Get the room design right, and the gain is multiplied 150 times. Get it wrong, and the failure is multiplied 150 times.
• It is occupied 24×7. Unlike the OT (occupied 8–12 hours/day), the OPD (occupied 6–10 hours/day), or even the ICU (in continuous use but with rotating patients), the patient room is occupied by the same person for 3–14 days continuously. The architecture must support this long occupancy.
• It must accommodate three users. Patient, clinical staff (nurse, doctor, attender), and family. Each has different needs and different time-shares of the room.
• It is the architectural site of dignity. Bathing, dressing, sleeping, intimate conversation — all happen in the patient room. The architecture either supports dignity through privacy, view, and personal control, or it strips dignity through cohort exposure, fluorescent lighting, and institutional finishes.
• It is service-dense at the headwall. A typical headwall in a single ward room carries 12+ distinct services — medical gases, power, communication, lighting, monitor data — across an 800–1,200 mm width.
• It is the cultural-specific element of Indian healthcare. Indian patient rooms differ from Western patient rooms in family attendant accommodation, religious provisions, food brought from outside, and visiting volume. The architecture must engage these culturally rather than ignoring them.

The composite effect is that the patient room is a hybrid of clinical instrument, hotel room, family suite, and cultural space — repeated 150+ times in a typical hospital. Designing it well is more consequential than designing any other single room in the hospital.

---

2. The Five Decisions

Every patient-room brief resolves to five core design decisions. Each cascades through the entire ward plan; all five must be made together at concept stage.

Decision 1 — Occupancy. Single (1 bed), twin (2 beds), or cohort (4–6 beds). Drives bed-mix percentage, ward area, cost per bed. The dominant trend internationally and increasingly in India: single rooms.

Decision 2 — Handedness. Same-handed (every room has identical layout) vs mirrored (rooms reflect across a shared services wall). Drives workflow consistency, construction cost, medical-error rate.

Decision 3 — Bathroom location. Inboard (toward corridor, bed faces external view) vs outboard (toward external wall, bed visible from corridor). Drives patient view, staff observation, plumbing run.

Decision 4 — Attendant accommodation. Convertible day-bed, recliner chair, or no formal provision. Drives Indian cultural fit, room area, furniture layout, linen demand.

Decision 5 — Acuity. Fixed (ward, ICU, AIIR each as distinct designs) vs adaptable (single room flexes between modes). Drives HVAC infrastructure, headwall services, operational flexibility.

The cascading impact. All five decisions interact. Choosing single rooms (Decision 1) makes inboard bathroom (Decision 3) more compelling because the larger room can dedicate the prime view to the bed. Choosing same-handed (Decision 2) makes the attendant zone (Decision 4) easier to design consistently. Choosing acuity-adaptable (Decision 5) requires a larger headwall service set than a fixed ward room. The architect makes all five at concept and revisits them only with full awareness of the propagation.

---

3. Single vs Twin vs Cohort

The most consequential of the five decisions is occupancy. Three configurations exist; international and Indian trends are shifting toward single rooms.

Single (1 bed) — 14–18 m². The international default since 2010 and increasingly the Indian default at private tertiary level. Maximum privacy, lowest cross-infection, NABH-preferred. Highest cost per bed but the cost premium is justified by reduced infection rates, lower noise, better sleep, faster recovery, and improved patient satisfaction. Indian deployment 2026: ~35% of hospital beds (private tertiary).

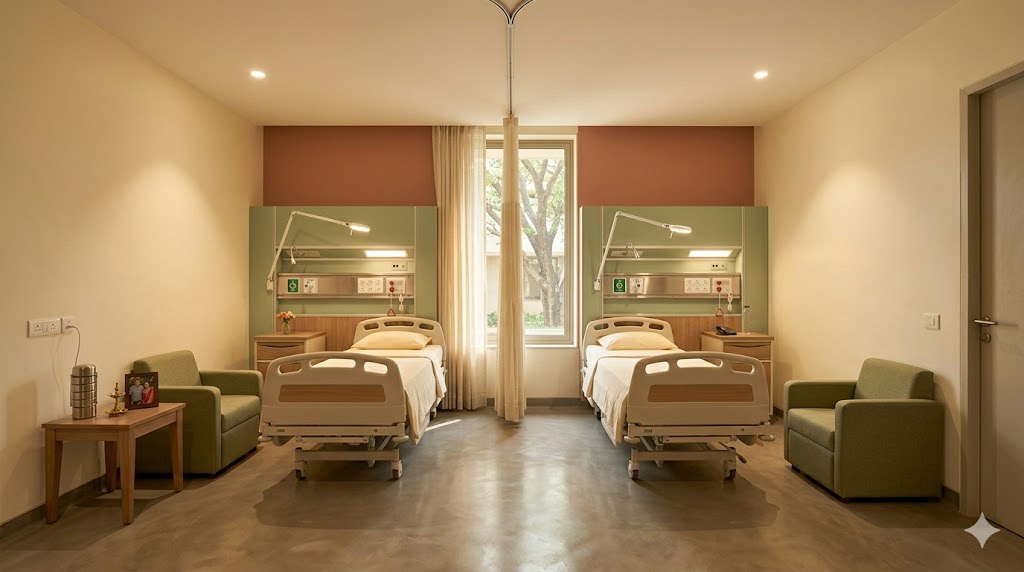

Twin (2 beds) — 22–28 m². Two beds in one room with a privacy curtain between. Cost-efficient (shared bathroom, shared services); some companionship benefit. Privacy compromised (curtain provides visual but not acoustic privacy); cross-infection risk moderate. NABH acceptable but not preferred. Indian deployment: ~25% (private mid-tier).

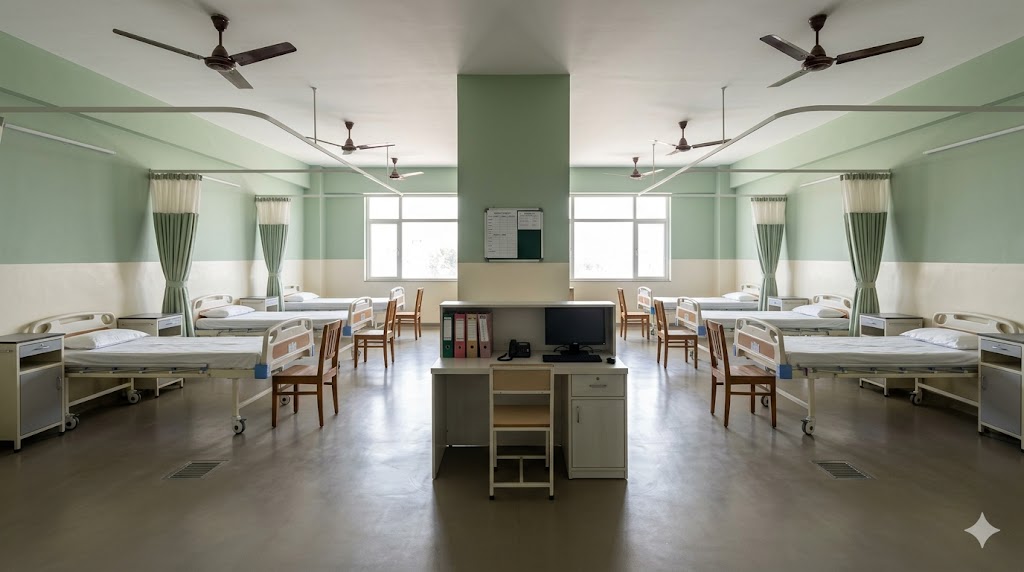

Cohort 4–6 beds — 60–80 m². Multiple beds in a single ward room with curtained partitions. Lowest cost per bed; easiest nurse observation. NABH 5th Edition discourages 4+ bed rooms on dignity grounds; many state CEAs allow them in budget-constrained government and budget private hospitals. Indian deployment: ~40% (government hospitals + budget private).

The trade-off matrix:

The international trend. Single rooms became the de-facto default in the United States after the 2006 AIA Guidelines update, and in the UK after the 2008 NHS single-room standard. Studies (Ulrich 2008, Pebble Project) document infection-rate reductions of 30–45%, length-of-stay reductions of 0.5–1.5 days, and patient-satisfaction improvements of 30–50% with single rooms. The capital cost premium (10–15% on the ward floor area) is repaid in operational cost reduction within 3–5 years.

The Indian context. Cost pressure pushes against the international single-room default in India. Government hospitals operate at ~80% cohort beds; private tertiary at ~60% single rooms; budget private at ~40% single rooms. The trend is moving toward more single rooms — the 2020 NABH 5th Edition update strengthened single-room preference, and PMJAY empanelment increasingly requires NABH compliance. The architect's task: insist on as many single rooms as the budget allows, justify the cost premium with infection-rate and length-of-stay arguments, and design the cohort rooms (where unavoidable) with maximum dignity within the constraints.

---

4. Same-Handed vs Mirrored

A subtle architectural decision with measurable clinical consequences: are all rooms identical (same-handed) or do they alternate as mirror reflections (mirrored)?

Same-handed. Every room has the bed in the same position (e.g., always with headwall on the left), bathroom in the same position, family chair in the same position. The clinical staff finds everything in the same place in every room. Workflow is predictable and consistent. Higher construction cost (5–8% premium) because each room needs its own plumbing risers — adjacent rooms cannot share a bathroom services wall.

Mirrored. Adjacent rooms reflect across a shared services wall. Two rooms share a plumbing chase between their bathrooms; the next pair shares the next chase. Lower construction cost because plumbing serves two rooms per riser. But: each pair has opposite layouts. Staff entering the room must mentally adjust to which "handedness" of the layout they are in.

The Pebble Project finding. A 2008 study at Methodist Hospital Indianapolis (Hendrich et al. 2009) compared same-handed and mirrored rooms in adjacent ward floors. Findings: same-handed reduced medical errors by 11%, reduced patient falls by 22%, reduced bed-side injury to staff by 14%. The mechanism: workflow consistency reduces the cognitive load on the nurse who enters 12 different rooms in a shift. Same-handed pays for itself in errors-avoided within 2–3 years.

Indian deployment. Mirrored is the cost-driven default (~70% of Indian hospitals). Same-handed is increasingly chosen at premium tertiary (~30% and growing). The cost premium is real (5–8%); the operational benefit is well-documented. The architect's recommendation: same-handed for adult ward floors at tertiary; mirrored acceptable for general inpatient if cost-constrained.

---

5. Inboard vs Outboard Bathroom

Where does the patient bathroom go relative to the corridor and the external wall? This decision affects patient view, staff observation, and plumbing run.

Inboard (bathroom toward corridor). The bathroom is between the corridor and the bed. The patient bed faces the external wall directly — the patient sees the window, the daylight, the view, from the bed. The bathroom is near the corridor, easy for a mobile patient to reach. Plumbing run is shorter (corridor service shaft is close).

Outboard (bathroom toward external wall). The bed is between the corridor and the bathroom. The corridor side of the room is the bed (visible from corridor for nurse observation). The bathroom is on the external wall, blocking part of the view from the bed.

The trade-off:

The recovery argument for inboard. Roger Ulrich's seminal 1984 study showed that patients with views of nature recover faster (reduced pain medication, shorter LOS) than patients with views of brick walls. The inboard configuration ensures the patient sees the view from the bed; the outboard configuration partially blocks the view. For medical wards (where observation is less critical and recovery is the focus), inboard is preferred.

The observation argument for outboard. ICU and step-down patients need direct visual contact from the corridor. The outboard configuration allows the nurse to see the patient from the doorway without entering the room. For high-acuity wards, outboard is preferred.

Hybrid approach. A single hospital can have both — inboard for ward floors, outboard for ICU floor. This is increasingly the working practice at tertiary hospitals.

---

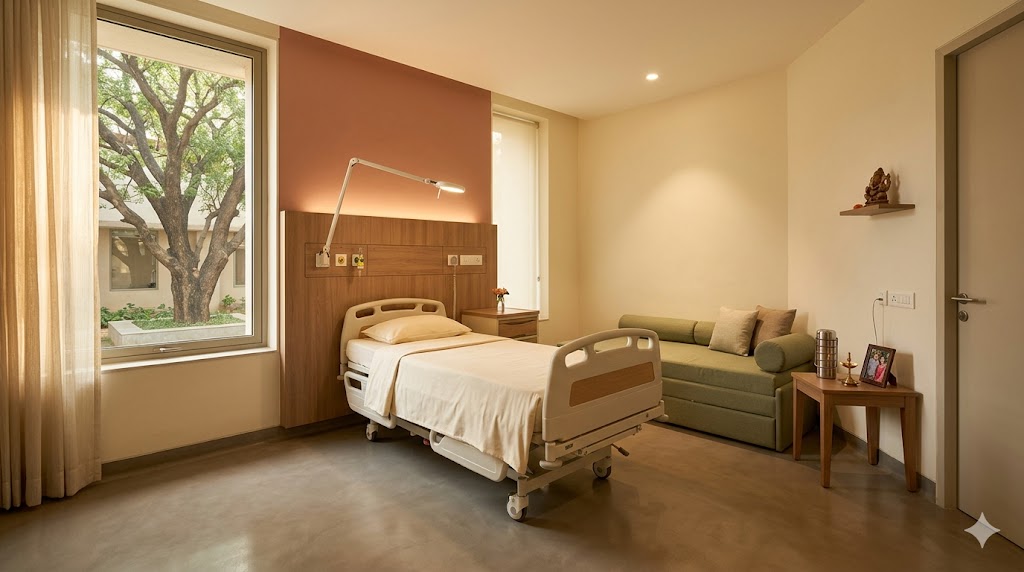

6. The Indian Family Attendant Accommodation

The single most distinctive feature of Indian hospital rooms compared to Western: a dedicated zone for the family attendant who stays overnight with the patient. The architecture must support this culturally; designing without it produces an Indian patient experience that is institutionally cold.

The Indian family attendant tradition. Most Indian patients above the age of 5 (and many below) are accompanied by a family attendant who stays overnight with them — a parent for a child, a spouse for an adult, an adult child for an elderly parent. The attendant cooks food at home and brings it (in a tiffin), helps with bathing, sleeps in the same room overnight, prays at the bedside, and serves as the patient's continuous human contact through the night when nursing checks are infrequent.

Architectural implications:

• Dedicated day-bed. Convertible chair-bed (1.9 × 0.7 m) for sleeping; folds back to chair during day. Standard furniture in Indian hospital rooms; rare in Western.
• Tiffin side table. A small table to hold a thermos and a hot-meal container brought from home. Some hospitals provide a heated cabinet; most rely on the thermos.
• Religious shelf. A small alcove or shelf for a religious symbol, a small puja, a candle. Highly culture-specific (not universal across all Indian families) but the spatial provision is small (200 × 300 mm shelf) and accommodates many traditions.
• Charging point. Mobile-phone charging outlets are essential — the family attendant uses the phone for calls, photos, and information access during the long stay.
• Visitor chair. In addition to the day-bed for the overnight attendant, a single visitor chair for the daytime visitors who come and go.
• Wardrobe / personal storage. Larger than Western hospital rooms because the patient AND the family attendant need storage.

The working 18 m² Indian single room. A 5 × 4 m clear (20 m² gross, 18 m² net after walls) is the working benchmark. Layout: ensuite (5 m²) + clinical zone (bed + headwall, 6–7 m²) + family zone (day-bed + wardrobe + side tables, 6–7 m²). The family zone takes ~30% of the floor area.

Total room area implication. An Indian single room (with full family attendant accommodation) is 14–18 m² minimum; often 18–22 m² in tertiary and premium private. A Western single room (without attendant) can be 12–14 m². The 4–6 m² difference is the architectural cost of cultural appropriateness.

"In India, the hospital room is not a single-occupancy room. It is a two-occupancy room — patient and one family attendant — and a daytime three-or-four-occupancy room when visitors arrive. The architect who designs for one occupant has designed for an empty hospital." — Dr. Sanjeev Sharma (b. 1968), hospital administrator, paraphrased

---

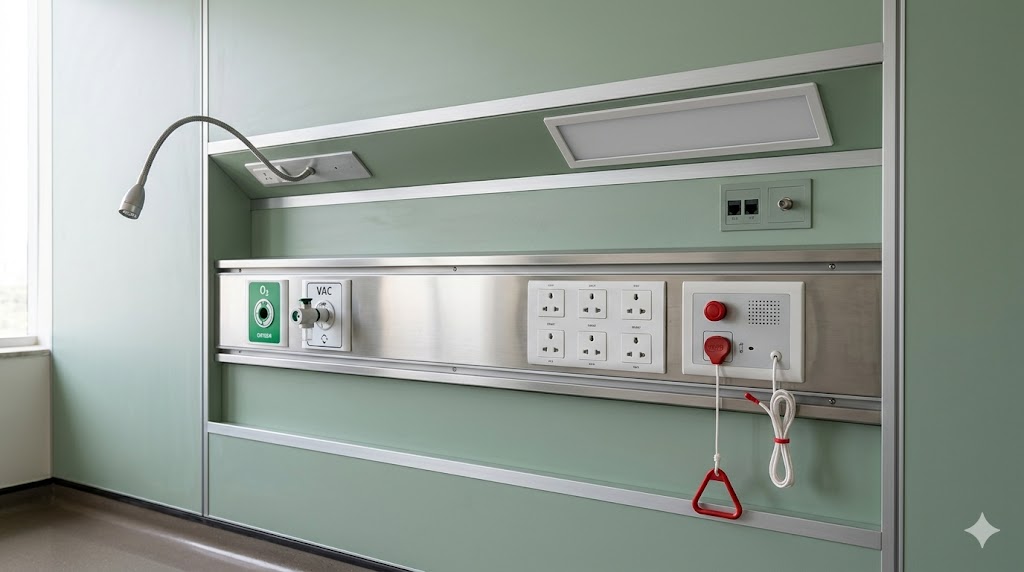

7. Headwall Services — The Most Service-Dense Wall

The headwall behind the patient bed is the most service-dense wall in any hospital. A typical single-room headwall carries 12+ distinct services across an 800–1,200 mm width.

Headwall service inventory (single ward room):

ICU additions:

• N₂O outlet
• ECG / vital-signs data port
• Ventilator power circuit (dedicated)
• BMS sensor port
• Code-blue button

The integrated service rail. A pre-fabricated horizontal rail (typically 800–1,200 mm wide × 200 mm deep) integrates all the services into a single wall-mounted assembly. Manufacturers (Kerma, Maxwell, Drager) supply these rails to hospital projects; they are fixed to the structural wall behind a finished panel. The architect's deliverable: the rail location and dimensions in the architectural drawings; the structural support for the rail in the structural drawings; the conduit and pipe penetrations behind in the MEP drawings.

The reading-and-examination lighting balance. Reading light should be warm (3000K), dimmable, and oriented to the patient's bedside. Examination light should be cool (4500K), bright (1,000+ lux at the bed), oriented to the patient as a whole. The two lights should be on separate switches; staff turn on examination light only during examination, then off; reading light remains under patient control.

The night light. Hospital rooms must have a low-level light for night-time orientation (toilet trips, nurse rounds). 5–10 lux at the floor level; warm; ideally on a motion sensor or 24-hour timer; never harsh enough to wake the patient.

---

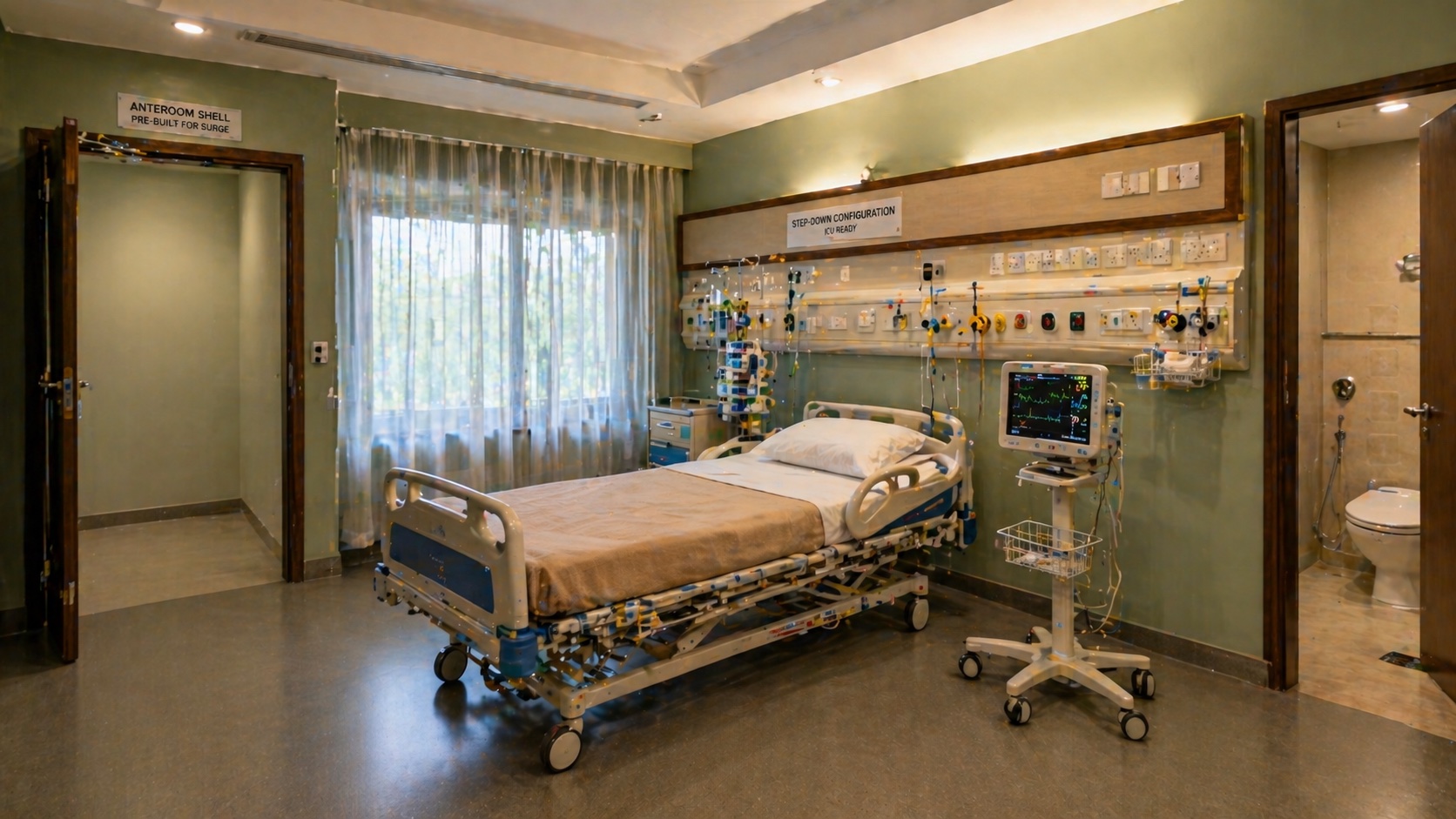

8. The Acuity-Adaptable Room

A contemporary innovation: a single room design that flexes between general ward, step-down, and ICU/AIIR by switching equipment and services. The room's pre-installed infrastructure supports the highest acuity; the lower acuities use a subset of the services.

The three modes:

Mode 1 — General Ward. Standard inpatient. Active services: O₂ × 1, suction × 1, power × 4 (UPS), pressure: standard slight positive, HVAC: 6 ACH ISO 9, family day-bed deployed, TV and Wi-Fi active.

Mode 2 — Step-down / HDU. High-dependency unit. Activated services: O₂ × 2, suction × 2, compressed air, monitor data port, UPS power × 8, HVAC: 8 ACH ISO 8, family chair removed and clinical zone enlarged.

Mode 3 — ICU / AIIR. Critical care with negative-pressure capability. Full activation: anteroom door deployed, HVAC switched to negative pressure with HEPA exhaust at 12 ACH, all medical-gas outlets active, UPS at full ICU load, PPE donning at entry, ICU bed with ventilator and monitor.

Pre-installed infrastructure for flex:

• Medical gas: Full ICU specification at every bed (O₂ × 2, suction × 2, compressed air, N₂O optional) with blanked outlets until activated
• Power: UPS-backed circuit per bed sized for ICU load (8 outlets minimum); activated as needed
• HVAC: Dedicated AHU per ward with damper switch from positive (ward) to negative (AIIR); HEPA exhaust pre-installed
• Anteroom shell: Pre-built but unused in ward mode; deployable for AIIR mode
• Bed type: Modular — ward bed, ICU bed, ventilator-ready bed swap as needed
• Monitor mounts: Pre-installed ceiling-mount tracks for ICU monitor + ventilator

Cost premium and benefit. 25–35% above standard ward construction cost. Offset by:

• Surge flexibility during pandemic (see Pandemic Preparedness guide)
• Reduced patient transfers (transfers are 5–9% of all clinical adverse events; acuity-adaptable rooms eliminate intra-hospital transfers)
• Reduced length of stay (patients don't wait for ICU bed availability when the room can flex)
• Operational flexibility (any bed can be used for any acuity)

Indian deployment. Emerging at premium tertiary hospitals (Manipal, Apollo, Fortis specialty wings). Not yet a default at most Indian hospitals. The case for it strengthens after pandemic-preparedness considerations were elevated post-COVID.

---

9. Specialty-Specific Patient Rooms

Beyond the general ward, several specialty-specific patient room variants exist. Each adapts the core design to clinical specialty requirements.

Maternity (postpartum) rooms. See Maternity & Women's Hospital Design guide. Differences: rooming-in newborn cot adjacent to mother; lactation chair; family attendant accommodation enhanced; ensuite sitz-bath capability; warm lighting palette.

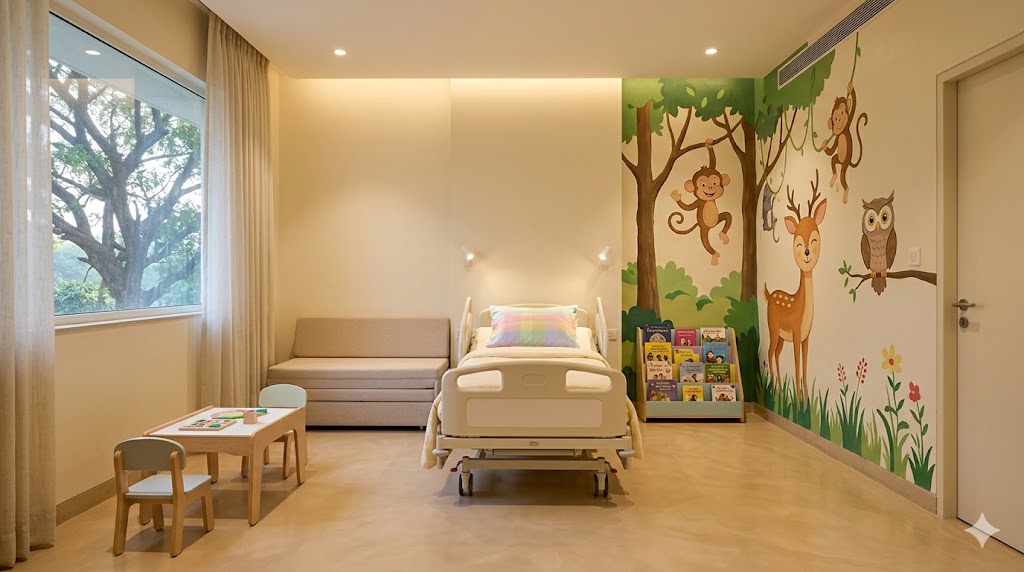

Paediatric rooms. Smaller scale (child bed, child chairs); parent rooming-in (mandatory under MusQan); play space within or adjacent; child-friendly colour palette and wall art; no aggressive imagery; sleep accommodation for parent in addition to family attendant.

Geriatric rooms. Larger ensuite with grab-bars; wider doors (1,000 mm minimum) for wheelchair; non-slip flooring; reduced step-overs; cognitive-orientation aids (clock, calendar, day/night clearly differentiated lighting); cable management to reduce trip hazard.

Mental-health rooms. See Mental Health & Psychiatric Facility guide. Ligature-resistant detailing throughout; tamper-resistant fixtures; observation provision; restricted-window opening; no exposed pipes or hooks.

Palliative-care rooms. See Cancer Hospital guide Section 10. Domestic-scale finishes; family attendant accommodation enhanced; multi-faith provision; garden-view priority; soft lighting.

Isolation (AIIR) rooms. See Pandemic Preparedness guide Section 4. Anteroom; negative pressure; HEPA exhaust; PPE donning at entry.

BMT rooms. See Cancer Hospital guide Section 8. HEPA-filtered positive pressure; anteroom; controlled access; specialised diet provision.

---

10. Common Failure Modes — Patient Room Specific

A pattern audit of stalled or under-performing Indian patient-room designs reveals recurring failures:

---

11. Pre-Design Audit Framework for Patient Room Briefs

A 12-question audit at concept stage. Three or more "no" answers indicate the brief is not patient-room-ready.

---

12. The Architect's Patient-Room-Specific Compliance Deliverables

Beyond general healthcare deliverables (see pillar reference), the patient-room-specific deliverables are:

"Patient room design is the most repeated architectural decision in any hospital. The architect who designs it well multiplies the gain across every patient stay. The architect who designs it poorly multiplies the failure across every patient stay. The math is unforgiving and the responsibility immense." — Dr. Devi Shetty (b. 1953), cardiac surgeon and founder of Narayana Health, paraphrased from a 2017 talk

---

References

• AIA Academy of Architecture for Health (2006) Guidelines for Design and Construction of Hospital and Health Care Facilities. Washington DC: American Institute of Architects.
• Bureau of Indian Standards (2016) National Building Code of India 2016, Part 4 — Fire and Life Safety; Part 8 — Building Services. New Delhi: BIS.
• Facility Guidelines Institute (2022) Guidelines for Design and Construction of Hospitals — Chapter on Patient Care Spaces. St. Louis: FGI.
• Hendrich, A.L., Fay, J. and Sorrells, A.K. (2009) 'The relationship of acuity-adaptable rooms to length of stay, transfers, falls, medication errors, and quality outcomes', Patient Safety in Surgery, 3(1).
• Hendrich, A.L., Bender, P.S. and Nyhuis, A. (2009) 'Validation of the Hendrich II Fall Risk Model', Applied Nursing Research, 16(1), pp. 9–21.
• Kobus, R.L., Skaggs, R.L., Bobrow, M., Thomas, J. and Payette, T.M. (2008) Building Type Basics for Healthcare Facilities — Chapter on Patient Rooms. 2nd edn. Hoboken: Wiley.
• NABH (2020) Standards for Hospitals, 5th Edition — Patient Care Chapter. New Delhi: National Accreditation Board for Hospitals & Healthcare Providers, Quality Council of India.
• NHS Estates (2008) Health Building Note 04-01: Adult In-Patient Facilities. London: Department of Health.
• Pebble Project (2008) The Pebble Project: A Series of Hospital Design Case Studies. The Center for Health Design.
• Reiling, J. (2007) Safe by Design: Designing Safety in Health Care Facilities, Processes, and Culture. Oakbrook Terrace, IL: Joint Commission Resources.
• Ulrich, R.S. (1984) 'View through a window may influence recovery from surgery', Science, 224(4647), pp. 420–421.
• Ulrich, R.S., Zimring, C., Zhu, X., DuBose, J., Seo, H.B., Choi, Y.S., Quan, X. and Joseph, A. (2008) 'A review of the research literature on evidence-based healthcare design', HERD: Health Environments Research & Design Journal, 1(3), pp. 61–125.
• World Health Organization (2008) Essential Environmental Health Standards in Health Care. Geneva: WHO.

Author's Note: The patient room is the architectural unit on which Indian hospital design has most to gain. Get the room right — single, same-handed, inboard bath, family attendant zone, full headwall services, two-light system, religious shelf — and the hospital absorbs every patient as a person. The author's intention with this guide is to support the architects who insist on the room's quality even when the cost-engineering pushes against it. The patient remembers the room. Design it for that. The series will continue with deeper guides on specialty patient rooms (paediatric, geriatric, palliative).
