Soil Bearing Capacity for Indian Architects

Every building in India rests on soil that its architect rarely sees and its occupants never consider. Yet the strength of that soil — its capacity to bear the imposed load without shearing, settling, or swelling — determines whether the structure will stand safely for a human lifetime or develop cracks within its first monsoon. In a country where approximately 60% of building failures are traced to foundation-related causes (Central Building Research Institute, 2018), the calculation of soil bearing capacity is not an academic exercise; it is the single most consequential numerical decision in the design of any structure.

This guide is written for architects, structural engineers, and informed clients who need to understand how safe bearing capacity is determined in Indian practice. It covers the theoretical foundations laid by Terzaghi and extended by Meyerhof, the practical methodology codified in IS 6403:1981 and IS 1904:1986, the correlations used to estimate soil parameters from the Standard Penetration Test, and the distinctive challenges posed by India's most problematic soils. It assumes the reader has a basic understanding of foundation engineering but will pause to explain terminology where it matters.

"The soil beneath a building is not merely a platform — it is a participant in the structural system. Ignore it, and the finest engineering above ground becomes meaningless." — V.N.S. Murthy, Textbook of Soil Mechanics and Foundation Engineering (Murthy, 2012)

---

1. The Problem India Is Building On

India's geological diversity is unmatched among nations of comparable size. The alluvial plains of the Indo-Gangetic basin, the black cotton soils of the Deccan Plateau, the lateritic terraces of the Western Ghats, the marine clays of coastal Mumbai and Chennai, the desert sands of Rajasthan, and the rock outcrops of the Peninsular shield together form a patchwork of foundation conditions that no single method or rule of thumb can address (Geological Survey of India, 2019). Each of these soil types behaves differently under load, responds differently to moisture, and demands a different foundation strategy.

Layered onto this geological complexity is an equally demanding anthropogenic condition: India is urbanising at an unprecedented pace. The Census of India (2011) recorded over 330 million housing units; independent projections suggest the country will add 80–100 million more by 2035. A substantial share of this construction happens without formal geotechnical investigation. A 2020 study of residential construction practices in tier-2 and tier-3 Indian cities found that fewer than 20% of independent houses up to G+2 commissioned a soil test before foundation design (BMTPC, 2020). The consequence is predictable: differential settlement, foundation cracking, and in extreme cases, collapse.

The National Building Code of India 2016 (Bureau of Indian Standards, 2016a) and IS 1904:1986 (Bureau of Indian Standards, 1986) together mandate subsurface investigation for any building above two storeys and for any building founded on expansive, made-up, or otherwise problematic soil. These codes exist not as bureaucratic obstacles but as the distilled lessons of decades of failures. The architect who takes them seriously does so in the service of their client; the architect who does not exposes both to risk they are usually unaware of.

---

2. Defining the Vocabulary

The term "bearing capacity" is used loosely in practice but has a precise technical meaning, and precision matters when decisions involve the safety of occupants. Four distinct quantities are encountered in foundation design:

Ultimate bearing capacity (q_u) is the maximum pressure, expressed in kN/m², that the soil can sustain at the base of a foundation before shear failure occurs. It is a theoretical limit — the point at which the soil mass ceases to carry additional load and instead flows outward and upward in a classical Prandtl–Terzaghi failure mechanism.

Safe bearing capacity (q_s) is the ultimate value divided by a factor of safety to account for uncertainty in soil parameters, construction quality, and future loading. IS 1904:1986 specifies a factor of safety of 3 for residential and commercial buildings, 3.5 for critical facilities, and never less than 2.5 for any permanent structure. The safe bearing capacity is the pressure the soil can carry with an acceptable margin against shear failure.

Net safe bearing capacity (q_ns) is the safe value minus the overburden pressure (γ × D_f, where γ is unit weight and D_f is foundation depth). Since the foundation replaces soil of the same volume, only the pressure in excess of that displaced soil does additional work on the underlying strata. This is the value used in structural design to size the footing.

Allowable bearing capacity (q_a) is the smaller of the net safe bearing capacity and the pressure that causes permissible settlement. In cohesive soils, settlement almost always governs — a footing may be safe against shear failure but still settle unacceptably. IS 8009 Part 1:1976 (Bureau of Indian Standards, 1976) governs settlement computation.

"The distinction between ultimate and safe bearing capacity is not a formality. The factor of safety does not protect the designer from ignorance; it protects the occupant from the natural uncertainty of soil behaviour." — Karl Terzaghi, Theoretical Soil Mechanics (Terzaghi, 1943)

---

3. IS 1904 Presumptive Values — The Starting Point

For preliminary design, feasibility assessments, and small residential buildings, IS 1904:1986 Table 1 provides presumptive safe bearing capacity values for a range of soil types. These are conservative figures derived from decades of field observation and laboratory testing across Indian conditions. They are permitted for use in low-rise residential construction up to G+2, provided the soil at site can be confidently identified as one of the listed categories by a qualified engineer.

Table 1: Presumptive Safe Bearing Capacity (IS 1904:1986)

Source: IS 1904:1986, Table 1 — Presumptive Safe Bearing Capacity values (Bureau of Indian Standards, 1986). For final design and buildings above G+2, site-specific geotechnical investigation per IS 6403:1981 is mandatory.

The critical caveat, stated explicitly in IS 1904 Clause 3.1.2, is that presumptive values apply only to unsaturated soil conditions and must be reduced where the water table is within one foundation width below the base. For expansive soils and marine clays, the presumptive values are indicative only; the actual site SBC may be lower, and shallow foundations are generally discouraged regardless of the numerical value.

---

4. Terzaghi's Classical Theory (1943)

Karl Terzaghi's 1943 formulation of the bearing capacity problem remains the intellectual foundation of all subsequent methods. Working at Harvard University in the 1930s and 1940s, Terzaghi idealised shallow foundation failure as a rigid-plastic mechanism in which the soil beneath the footing forms an active wedge, which displaces a passive zone laterally and upward along a logarithmic spiral surface (Terzaghi, 1943).

For a strip footing of width B at depth D_f in a soil with cohesion c, unit weight γ, and friction angle φ, Terzaghi's ultimate bearing capacity equation is:

q_u = c·N_c + q·N_q + 0.5·γ·B·N_γ

where q = γ·D_f is the overburden pressure, and N_c, N_q, N_γ are dimensionless bearing capacity factors — functions only of the friction angle φ. Each term has a physical interpretation: c·N_c is the contribution of soil cohesion, q·N_q is the contribution of overburden (surcharge above foundation base), and 0.5·γ·B·N_γ is the contribution of the soil's self-weight within the failure wedge.

Terzaghi Bearing Capacity Factors

After Terzaghi (1943); values as tabulated in Bowles (1996) and Murthy (2012).

Terzaghi's formula applies strictly to a strip footing with a rough base, with failure occurring in a general shear mode (appropriate for dense sand and stiff clay). For square footings, the N_c term is multiplied by 1.3 and the N_γ term by 0.4; for circular footings, the corresponding multipliers are 1.3 and 0.3. For loose or compressible soils where local shear failure occurs, the friction angle is reduced by tan φ = (2/3) tan φ and cohesion by c = (2/3)c.

Terzaghi's elegance lies in the separation of variables — the three soil contributions (cohesion, surcharge, self-weight) enter the equation additively, allowing intuitive reasoning about which term dominates in which soil. In pure cohesive soil with φ = 0 and D_f = 0, the equation collapses to q_u = 5.7·c — an astonishingly simple result that remains the basis of rapid assessment for clays.

"The simplicity of Terzaghi's equation is not a sign of inadequacy. It is a sign that the dominant physics has been captured. Later refinements correct details; they do not replace the framework." — V.N.S. Murthy (Murthy, 2012)

---

5. Meyerhof's General Equation — The Modern Standard (IS 6403:1981)

In 1963, George Geoffrey Meyerhof — working at the Nova Scotia Technical College in Canada — extended Terzaghi's formulation to address three limitations that practice had exposed (Meyerhof, 1963). First, Terzaghi's equation was derived for strip footings and required ad-hoc multipliers for other shapes. Second, it neglected the contribution of shear resistance along the vertical sides of the foundation at depth. Third, it did not explicitly address inclined or eccentric loading.

Meyerhof's general bearing capacity equation, adopted verbatim in IS 6403:1981 Annex B (Bureau of Indian Standards, 1981), introduces multiplicative shape (S), depth (d), and inclination (i) factors:

q_u = c·N_c·S_c·d_c·i_c + q·N_q·S_q·d_q·i_q + 0.5·γ·B·N_γ·S_γ·d_γ·i_γ

For vertical central loading (the most common design case), the inclination factors equal unity and the equation simplifies. The bearing capacity factors themselves are:

• N_q = e^π·tan(φ) × tan²(45° + φ/2)
• N_c = (N_q − 1) × cot(φ) [5.14 for φ = 0]
• N_γ = (N_q − 1) × tan(1.4φ)

Meyerhof Bearing Capacity Factors (as adopted in IS 6403)

After Meyerhof (1963); values as tabulated in IS 6403:1981 Annex B Table 1 (Bureau of Indian Standards, 1981) and Das (2016).

Shape Factors (Meyerhof)

For a footing of width B and length L, with K_p = tan²(45° + φ/2):

Depth Factors (Meyerhof)

Source: IS 6403:1981 Annex B (Bureau of Indian Standards, 1981); Meyerhof (1963).

The practical significance of Meyerhof's extension is twofold. For a square footing on medium-dense sand (φ = 30°) at D_f/B = 1, the shape and depth factors together increase the computed ultimate capacity by roughly 25–35% over Terzaghi's formula. This is not a licence to design more aggressively — it is a more accurate accounting of the soil mechanics. Conversely, where site conditions deviate from Meyerhof's assumptions (inclined loading, eccentric loading, sloping ground), the inclination factors can reduce capacity by 30% or more, a reduction that simple Terzaghi would miss.

"Bearing capacity theory is not a closed subject. Every factor added to the equation represents an acknowledgement that the soil is more complex than our equations." — George G. Meyerhof (Meyerhof, 1963)

---

6. The Standard Penetration Test and Its Correlations

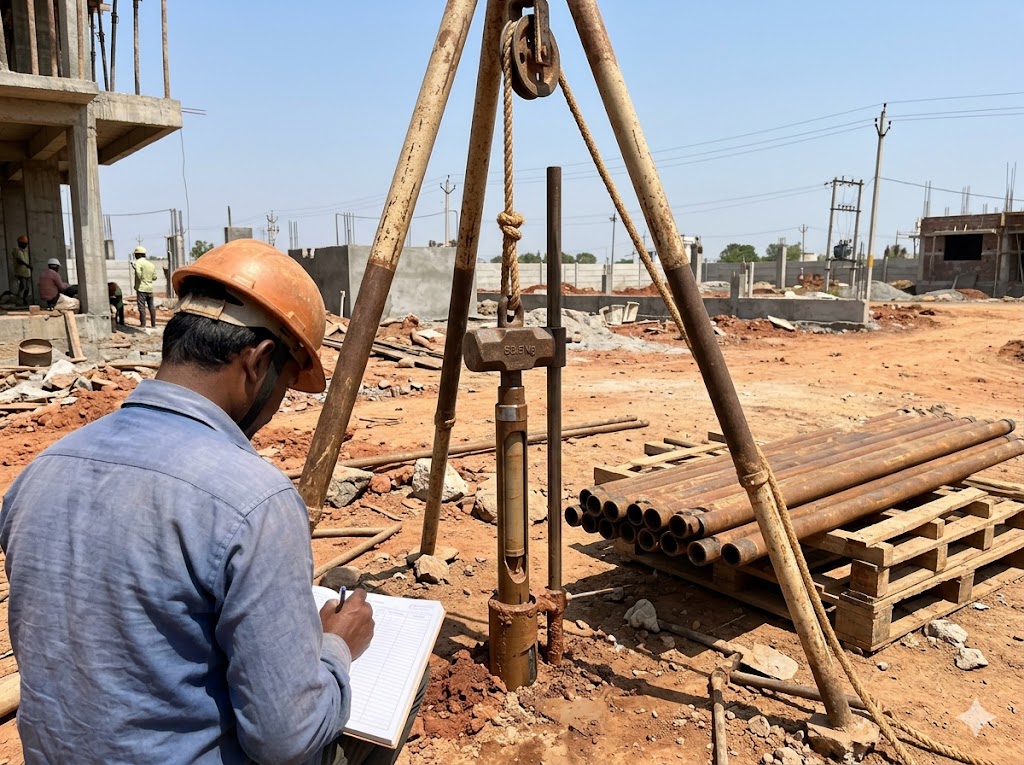

In Indian practice, the Standard Penetration Test (SPT) as specified in IS 2131:1981 (Bureau of Indian Standards, 1981b) is the most common in-situ investigation. A split-spoon sampler is driven into the soil at the bottom of a borehole by a 63.5 kg hammer falling through 760 mm; the number of blows required to drive the sampler 300 mm (after an initial 150 mm seating drive) is the N-value.

The raw N-value requires correction for overburden pressure, hammer energy, and equipment variables before it can be used in bearing capacity calculation. The standardised value, N₆₀, corresponds to a test conducted at 60% hammer energy efficiency — the international reference. Indian practice typically uses donut hammers with roughly 45–55% energy efficiency, requiring upward correction.

SPT N-Value to Friction Angle (Cohesionless Soils)

The most widely used correlation is Peck, Hanson and Thornburn's (1974) empirical relation:

φ (degrees) = 27.1 + 0.3·N − 0.00054·N²

After Peck, Hanson and Thornburn (1974); tabulation per Bowles (1996) and Das (2016).

SPT N-Value to Undrained Cohesion (Cohesive Soils)

For saturated clays, Terzaghi and Peck's original correlation gives undrained cohesion c_u in kN/m²:

c_u ≈ 6 × N

Stroud (1974) proposed a range of 4–6 N for most clays, with the higher value for heavily overconsolidated clays. In Indian practice, 6 N is used as a conservative estimate for preliminary design; final values should be confirmed by unconfined compression tests per IS 2720 Part 10 (Bureau of Indian Standards, 1991).

After Terzaghi and Peck (1948); consistency classes per IS 1498:1970 (Bureau of Indian Standards, 1970).

"The SPT is, technically speaking, a poor test. It is crude, operator-dependent, and of doubtful theoretical basis. It endures because it is cheap, universally available, and — when interpreted by an experienced engineer — astonishingly useful." — J.E. Bowles, Foundation Analysis and Design (Bowles, 1996)

---

7. Water Table Correction

Groundwater profoundly reduces bearing capacity. When soil is saturated, pore water pressure reduces the effective stress that mobilises shear resistance; the effective unit weight drops from γ_bulk (typically 17–20 kN/m³) to γ' (the submerged unit weight, typically 9–11 kN/m³ — roughly half). For cohesionless soils this halves the bearing capacity contribution from self-weight; for cohesive soils the effect is less dramatic but still material because of the reduction in effective overburden.

IS 6403:1981 Annex A (Bureau of Indian Standards, 1981) specifies two correction factors applied to the Meyerhof equation:

R_w1 reduces the overburden term (q·N_q). It accounts for water table above the foundation base. When the water table is at ground level, R_w1 = 0.5. When it is at or below the foundation base, R_w1 = 1.0. Linear interpolation applies between these limits.

R_w2 reduces the self-weight term (0.5·γ·B·N_γ). It accounts for water within the failure zone below the foundation base — a zone extending roughly one foundation width B below the base. When the water table is at or above the base, R_w2 = 0.5. When it is at or below depth (D_f + B), R_w2 = 1.0. Linear interpolation applies between these limits.

Water Table Correction Factors (IS 6403 Annex A)

Source: IS 6403:1981 Annex A (Bureau of Indian Standards, 1981). Applies to cohesionless soils; for cohesive soils under undrained conditions, water table effects are negligible on the cohesion term.

In cities with shallow water tables — much of coastal Chennai, parts of old Kolkata, the backwaters of Kerala, and low-lying neighbourhoods in Mumbai — the water-table correction can reduce the computed bearing capacity by 40–50%. In these conditions, the architect must coordinate with the structural engineer to either deepen the foundation below the influence of groundwater, use a raft to distribute load, or move to a pile foundation entirely.

Beyond bearing capacity, a high water table presents three additional concerns: uplift on basement slabs, liquefaction in seismic zones, and long-term corrosion of reinforcement. IS 1893 Part 1:2016 Clause 6.3.5.3 requires explicit liquefaction assessment for saturated cohesionless soils in Seismic Zones III, IV, and V (Bureau of Indian Standards, 2016b).

"A high water table is not merely a construction nuisance; it is a thermodynamic statement about the soil. The engineer who ignores it designs for a condition that does not exist." — Sukumar Pal, Advanced Foundation Engineering (Pal, 2017)

---

8. Worked Example — G+2 Residence on Alluvial Soil

Consider a G+2 residential building in Lucknow with column loads of 800 kN at service condition. The soil report from a geotechnical investigation per IS 1892:1979 (Bureau of Indian Standards, 1979) indicates medium-dense sand to 4 m depth, with an average SPT N₆₀ of 18 across the foundation zone. The water table is at 3.5 m below ground level. The architect proposes an isolated square footing at D_f = 1.5 m.

Step 1 — Determine soil parameters. From Peck, Hanson and Thornburn (1974):

• φ = 27.1 + 0.3(18) − 0.00054(18)² = 32.3°
• Unit weight γ = 18 kN/m³ (typical for medium-dense alluvial sand)
• c = 0 (cohesionless)

Step 2 — Try B = 1.5 m and compute.

• Overburden q = γ·D_f = 18 × 1.5 = 27 kN/m²
• Water table D_w = 3.5 m; D_f = 1.5 m; D_f + B = 3.0 m. Since D_w > D_f + B, R_w1 = R_w2 = 1.0.
• Bearing capacity factors at φ = 32°: N_c = 35.5, N_q = 23.2, N_γ = 22.0 (interpolated from Meyerhof table).
• K_p = tan²(45 + 16) = tan²(61°) = 3.25
• Shape factors for square: S_c = 1 + 0.2(3.25) = 1.65; S_q = S_γ = 1 + 0.1(3.25) = 1.33
• Depth factors at D_f/B = 1.0: d_c = 1 + 0.2√3.25 × 1.0 = 1.36; d_q = d_γ = 1 + 0.1√3.25 × 1.0 = 1.18

Step 3 — Compute ultimate bearing capacity.

• q_u = 0 + 27 × 23.2 × 1.33 × 1.18 × 1.0 + 0.5 × 18 × 1.5 × 22.0 × 1.33 × 1.18 × 1.0
• q_u = 0 + 984 + 466 = 1450 kN/m²

Step 4 — Apply factor of safety.

• Safe bearing capacity q_s = 1450 / 3 = 483 kN/m²
• Net safe bearing capacity q_ns = 483 − 27 = 456 kN/m²

Step 5 — Verify footing adequacy.

• Required area = 800 / 456 = 1.75 m²; so a square footing 1.4 × 1.4 m would suffice.
• With the 1.5 × 1.5 m trial footing, actual pressure = 800 / 2.25 = 356 kN/m² — safely within q_ns.

Step 6 — Check settlement (per IS 8009 Part 1). For medium-dense sand at 356 kN/m² pressure, elastic settlement is approximately 15 mm — within the 25 mm limit for isolated footings on sand (IS 1904 Clause 3.3.4). Foundation accepted.

This example illustrates the value of systematic calculation. A naive use of IS 1904 presumptive values for "medium sand" (100–245 kN/m²) would have suggested a much larger footing than necessary. The Meyerhof calculation, incorporating footing depth and shape factors, reveals that even for modest column loads, isolated footings at conventional depths are highly efficient in competent alluvial sand.

---

9. The Four Problem Soils of India

While the methods described so far apply to any soil, four Indian soil types demand particular caution because the standard methods either understate or overstate their true behaviour.

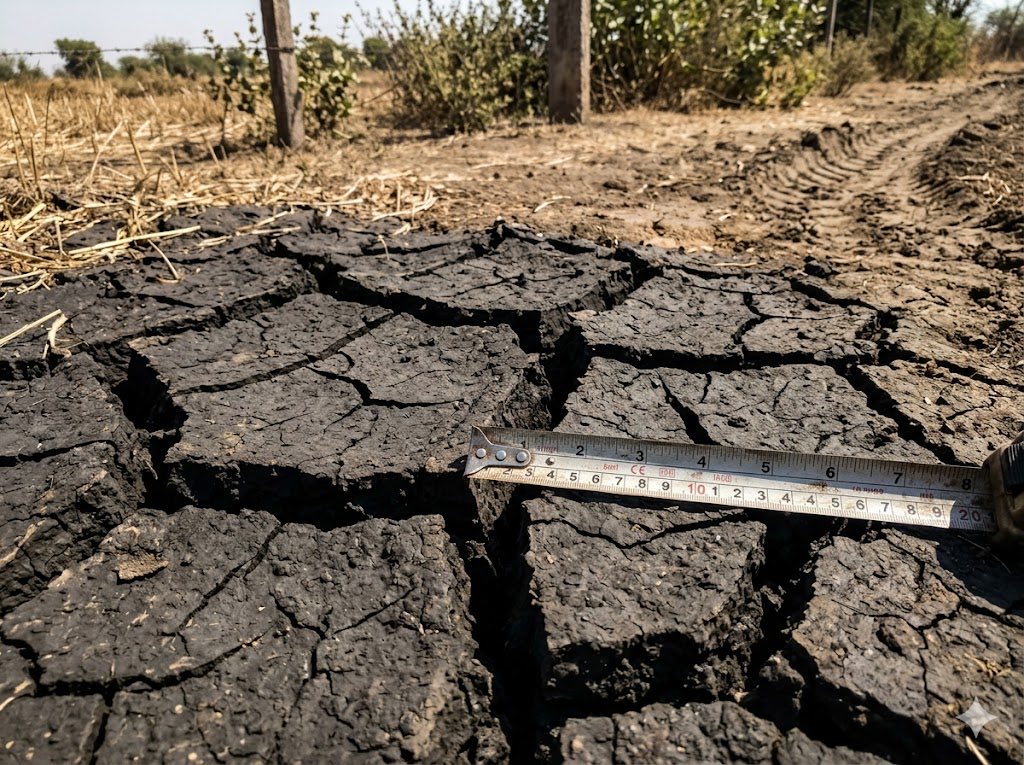

Black Cotton Soil

Black cotton soil — regur in Sanskrit, kali mitti in Hindi — covers approximately 20% of India's land area across the Deccan Plateau. Formed from the in-situ weathering of basaltic rock, it is rich in montmorillonite clay minerals that exhibit extreme volumetric change with moisture. A typical black cotton soil swells 20–30% when wet and cracks deeply when dry, with the zone of seasonal moisture variation (the active zone) extending 1.5–3.5 m below the ground surface (Saran, 2006).

No presumptive bearing capacity value is meaningful for black cotton soil under seasonal loading. A foundation that appears to carry its load in the dry season may heave 50 mm in the monsoon as the soil swells; when the monsoon recedes and the clay shrinks, the foundation settles unevenly. The result is the characteristic diagonal cracking in walls that scars millions of buildings across Maharashtra, Madhya Pradesh, and Gujarat.

The standard solution, developed at CSIR-CBRI Roorkee and codified in IS 2911 Part III:1980 (Bureau of Indian Standards, 1980), is the under-reamed pile foundation. An under-reamed pile is a straight bore with one or two enlarged bulbs at depth; the bulbs anchor the pile in the stable soil below the active zone, while the straight shaft transmits load without generating side friction in the expansive zone. For low-rise residential construction, a single under-reamed pile 3–4 m deep with a 500 mm bulb typically carries 100–200 kN at service load.

Alternative approaches include a CNS (Cohesive Non-Swelling) soil cushion — replacing the top 1.0–1.5 m of black cotton with compacted non-expansive soil — or a raft foundation with deep edge beams. The choice depends on plot size, budget, and building height. What is not acceptable is a conventional isolated footing at 1.0–1.2 m depth in the active zone; such a foundation will fail in any soil with a plasticity index above 25 and a free swell index above 50%.

Marine Clay

Marine clay, found in reclaimed areas of Mumbai (Backbay, Churchgate, Colaba), older parts of Chennai, coastal Kochi, and the Sundarbans delta, presents the opposite problem from black cotton: it is extraordinarily soft, with undrained shear strengths as low as 10–25 kN/m² and water contents often exceeding 60%. Consolidation settlement in marine clay can continue for decades — the iconic 1936 Art Deco buildings of south Mumbai are still settling, at a few millimetres per year, into the marine deposits beneath them (Varghese, 2014).

Marine clay foundation design is governed by settlement rather than bearing capacity. A foundation may be safe against shear failure at a trivial pressure (say, 40 kN/m²) while undergoing 100 mm of settlement over 10 years. IS 2911 Part 1:2010 (Bureau of Indian Standards, 2010) prescribes bored cast-in-situ piles extending to competent strata — typically weathered rock or dense sand at 20–40 m depth — as the standard solution. For low-rise construction, raft foundations with consolidation-based settlement analysis per IS 8009 are sometimes acceptable, but only with thorough investigation and experienced geotechnical advice.

Alluvial Soil with Shallow Water Table

The Indo-Gangetic alluvium — Delhi, Lucknow, Kanpur, Patna, Kolkata — is a sequence of sand, silt, and clay layers laid down by the Ganga and its tributaries. Bearing capacity is generally moderate, but two hazards emerge at specific sites: liquefaction and differential settlement.

Liquefaction occurs when saturated, loose, fine-grained cohesionless soil loses all effective stress during cyclic seismic loading and behaves as a dense fluid. IS 1893 Part 1:2016 Clause 6.3.5 requires liquefaction assessment for any saturated granular soil in Seismic Zones III, IV, or V when the SPT N-value is below a depth-dependent threshold (typically 15–25 near the surface). The 1934 Bihar earthquake and the 2001 Bhuj earthquake both produced extensive liquefaction damage in alluvial soil; the 2015 Nepal earthquake similarly liquefied Kathmandu Valley sediments. In affected sites, ground improvement (vibro-compaction, dynamic compaction, stone columns) or pile foundations to non-liquefiable strata are the engineering responses.

Differential settlement is more common than dramatic liquefaction. Alluvial sequences often contain buried channels of soft clay interspersed with dense sand. A building founded partly on one and partly on the other will settle non-uniformly, producing the angular distortion limits set in IS 1904 (0.0015L for framed structures). Only site-specific investigation at multiple borehole locations can detect such variation.

Filled-up and Made Ground

Urban reclamation — whether from demolition debris, construction waste, or engineered fill — is increasingly common as Indian cities expand onto former water bodies, quarries, and low-lying land. Filled ground has no predictable bearing capacity; a 2 m depth of fill may contain everything from concrete rubble to polythene bags, placed with varying compaction across its area. The IS 1904 presumptive value of "under 100 kN/m²" is genuinely a lower bound — actual capacity may be 20 kN/m² or less in poorly placed fill.

The only responsible approach in made ground is investigation followed by either removal, ground improvement, or piling through the fill to natural strata. Where engineered fill has been placed with density control and documentation (as in DDA's reclaimed residential layouts), a reduced presumptive value may be defensible. Where fill is undocumented, no presumptive value is safe.

"The problem is never the soil itself. The problem is our tendency to assume the soil beneath our building is the soil we have designed for. Every serious failure I have investigated has involved, somewhere, an assumption that turned out to be wrong." — Prof. Swami Saran, IIT Roorkee (Saran, 2006)

---

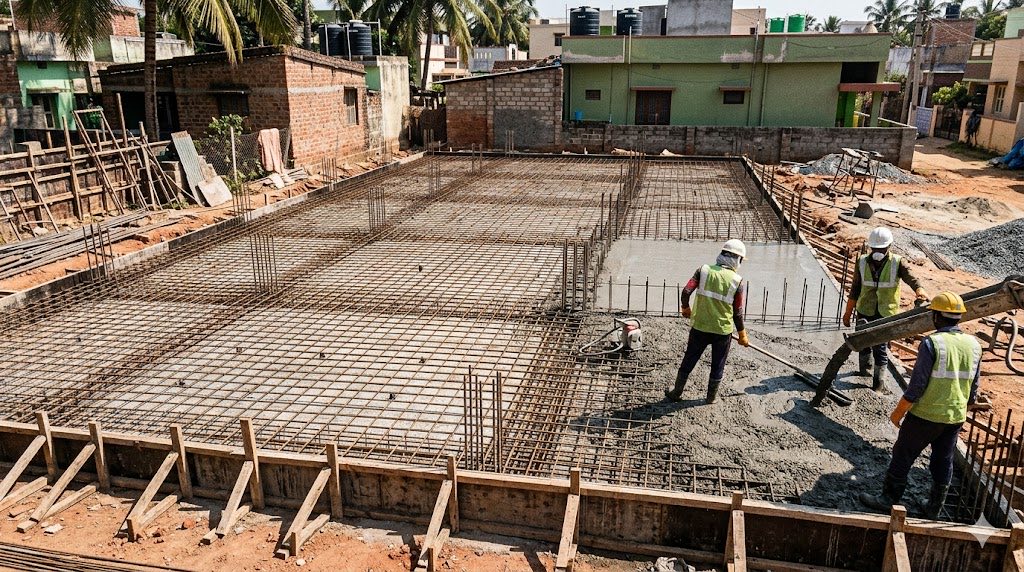

10. Choosing the Foundation Type

The bearing capacity calculation is the starting point for foundation selection, not the conclusion. The following decision matrix integrates bearing capacity with loading, soil character, site conditions, and cost into a preliminary foundation recommendation. Final selection requires the judgement of a qualified structural engineer familiar with local conditions.

Foundation Type Selection Matrix

Sources: IS 1904:1986; IS 2911 (various parts); IS 2950:1981; IRC 78:2014. Relative cost and depth figures from Varghese (2014) and Bowles (1996).

The core principle: match the foundation to the soil, not the soil to the foundation. An architect who insists on an isolated footing on black cotton soil because "that's what we always use" has crossed from design into negligence. Conversely, specifying expensive piles on competent rock where a pad footing would suffice wastes client money without improving safety.

---

11. The Errors Architects Consistently Make

Twenty years of post-occupancy investigation across Indian residential construction has produced a depressingly consistent catalogue of bearing-capacity-related failures. The following errors are common enough to deserve explicit warning:

Using IS 1904 presumptive values without soil identification. The presumptive values apply to identified soil types. Looking at a trench during foundation excavation and declaring the soil "medium sand" based on appearance is not identification — it is guessing. Accurate identification requires, at minimum, a sieve analysis per IS 2720 Part 4 (Bureau of Indian Standards, 1985) and a visual classification per IS 1498:1970.

Failing to reduce SBC for water table. In cities with shallow water tables (Chennai, Kolkata, parts of Mumbai, Kerala), the reduction from water-table correction alone can halve the computed bearing capacity. Designers who take the presumptive value at face value in these cities will under-size foundations.

Ignoring seasonal water table variation. In most of India, the water table rises 1–3 m between pre-monsoon and post-monsoon. A geotechnical report measured in March may show the water table at 6 m; by September it may be at 3 m. Foundation design must consider the worst case, not the average.

Using shallow foundations on black cotton soil. Every monsoon produces hundreds of newspaper reports of cracked walls in Nagpur, Bhopal, Ahmedabad, and Pune. Nearly all trace to conventional footings placed within the active zone of expansive soil. The remedy — under-reamed piles or CNS cushions — is well established, inexpensive, and unambiguously specified in IS 2911 Part III.

Neglecting settlement analysis for cohesive soils. Bearing capacity governs in sand; settlement governs in clay. A foundation designed purely against shear failure on soft clay will settle excessively. IS 8009 Part 1:1976 prescribes the consolidation-based method; ignoring it is a code violation as well as an engineering error.

Trusting unverified soil reports. Some geotechnical laboratories in India produce reports with errors, interpolations, or outright fabrications. A report showing SPT N-values of exactly 15 at every depth, or consolidation parameters that do not match the index properties, should be treated with suspicion. A second opinion from an established NABL-accredited laboratory or an IIT/NIT geotechnical department is inexpensive relative to the cost of foundation failure.

Applying Meyerhof factors beyond their range of validity. The shape and depth factors are empirical corrections fitted to laboratory and field data in specific ranges. Extrapolating them to very deep foundations (D_f/B > 2.5) or unusual geometries is not supported. For such cases, specialised methods or pile foundations should be used.

"Foundation engineering is not difficult. It is uncompromising. The soil enforces its laws whether the engineer understands them or not, and the enforcement mechanism is the failure of the structure." — B.C. Punmia, Soil Mechanics and Foundations (Punmia et al., 2017)

---

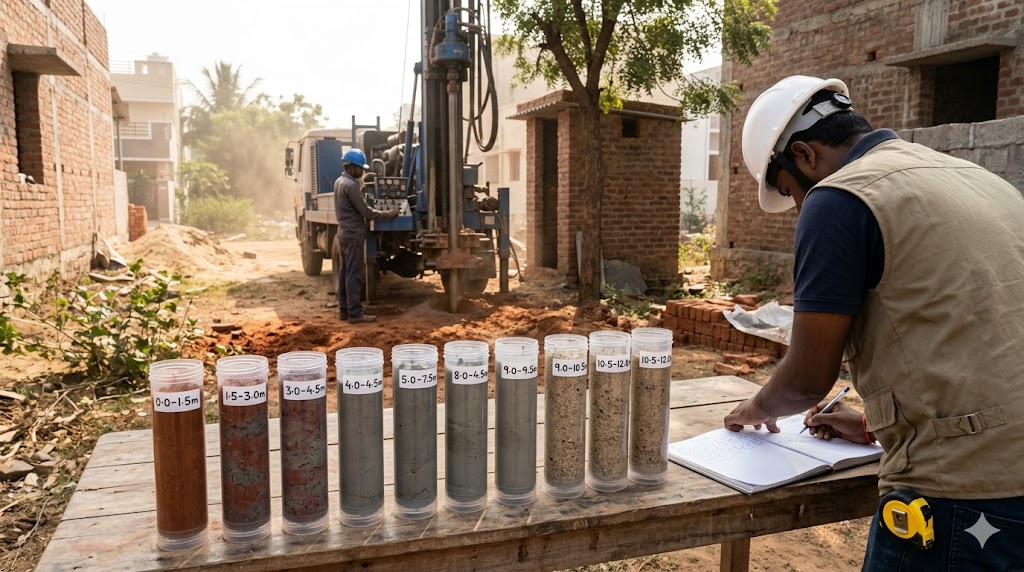

12. When to Engage a Geotechnical Engineer

The implicit question behind much of this guide is: when can the architect rely on presumptive values and simple calculations, and when must a qualified geotechnical engineer be engaged? The Indian Geotechnical Society (IGS) recommends geotechnical investigation and specialist design for all of the following conditions (Indian Geotechnical Society, 2018):

• Any building above G+2
• Any building in Seismic Zones III, IV, or V (which includes Mumbai, Delhi, Kolkata, Chennai, and most of the Himalayan and north-east region)
• Any site with expansive soil (black cotton or similar), marine clay, or filled ground
• Any site where the water table is within 2 m of the foundation base
• Any site on slopes, near water bodies, or in flood-prone areas
• Any building with significant architectural irregularities — large cantilevers, open ground floors, setbacks

For a G+2 residence on identified medium-dense sand with a deep water table and no expansive soil, the architect working with a structural engineer can confidently use the methods in this guide for preliminary design. For anything more demanding, a geotechnical investigation per IS 1892:1979 and a site-specific foundation design by a qualified geotechnical engineer is not an optional expense — it is a professional obligation to the client.

The cost of geotechnical investigation for a typical Indian residential plot is ₹10,000–25,000 — roughly 0.1–0.3% of total construction cost. The cost of foundation failure, by contrast, is typically 10–50× greater and often involves litigation, insurance disputes, and sometimes loss of life.

---

References

• Agarwal, P. and Shrikhande, M. (2006) Earthquake Resistant Design of Structures. New Delhi: PHI Learning.
• BMTPC (2020) Residential Construction Practices Survey — Tier 2 and Tier 3 Cities. New Delhi: Building Materials and Technology Promotion Council, Ministry of Housing and Urban Affairs.
• Bowles, J.E. (1996) Foundation Analysis and Design. 5th edn. New York: McGraw-Hill.
• Bureau of Indian Standards (1970) IS 1498:1970 — Classification and Identification of Soils for General Engineering Purposes. New Delhi: BIS.
• Bureau of Indian Standards (1976) IS 8009 (Part 1):1976 — Code of Practice for Calculation of Settlements of Foundations: Shallow Foundations Subjected to Symmetrical Static Vertical Loads. New Delhi: BIS.
• Bureau of Indian Standards (1979) IS 1892:1979 — Code of Practice for Subsurface Investigation for Foundations. 1st rev. New Delhi: BIS.
• Bureau of Indian Standards (1980) IS 2911 (Part III):1980 — Code of Practice for Design and Construction of Pile Foundations: Under-Reamed Piles. New Delhi: BIS.
• Bureau of Indian Standards (1981) IS 6403:1981 — Code of Practice for Determination of Bearing Capacity of Shallow Foundations. 1st rev. New Delhi: BIS.
• Bureau of Indian Standards (1981b) IS 2131:1981 — Method for Standard Penetration Test for Soils. 1st rev. New Delhi: BIS.
• Bureau of Indian Standards (1985) IS 2720 (Part 4):1985 — Methods of Test for Soils: Grain Size Analysis. 2nd rev. New Delhi: BIS.
• Bureau of Indian Standards (1986) IS 1904:1986 — Code of Practice for Design and Construction of Foundations in Soils: General Requirements. 3rd rev. New Delhi: BIS.
• Bureau of Indian Standards (1991) IS 2720 (Part 10):1991 — Methods of Test for Soils: Determination of Unconfined Compressive Strength. 2nd rev. New Delhi: BIS.
• Bureau of Indian Standards (2000) IS 456:2000 — Plain and Reinforced Concrete — Code of Practice. 4th rev. New Delhi: BIS.
• Bureau of Indian Standards (2010) IS 2911 (Part 1, Section 2):2010 — Design and Construction of Pile Foundations: Bored Cast In-Situ Concrete Piles. New Delhi: BIS.
• Bureau of Indian Standards (2016a) National Building Code of India 2016. New Delhi: BIS.
• Bureau of Indian Standards (2016b) IS 1893 (Part 1):2016 — Criteria for Earthquake Resistant Design of Structures. 6th rev. New Delhi: BIS.
• Central Building Research Institute (2018) Annual Report 2017–18. Roorkee: CSIR-CBRI.
• Census of India (2011) Housing Stock, Amenities and Assets in Slums — India. New Delhi: Office of the Registrar General.
• Das, B.M. (2016) Principles of Foundation Engineering. 8th edn. Boston: Cengage Learning.
• Geological Survey of India (2019) Geological and Mineral Map of India. Kolkata: Geological Survey of India.
• Indian Geotechnical Society (2018) IGS Practice Guidelines for Foundation Engineering. New Delhi: IGS.
• Meyerhof, G.G. (1963) 'Some recent research on the bearing capacity of foundations', Canadian Geotechnical Journal, 1(1), pp. 16–26.
• Murthy, V.N.S. (2012) Textbook of Soil Mechanics and Foundation Engineering: Geotechnical Engineering Series. New Delhi: CBS Publishers.
• Pal, S. (2017) Advanced Foundation Engineering: A Practical Approach. New Delhi: New Age International.
• Peck, R.B., Hanson, W.E. and Thornburn, T.H. (1974) Foundation Engineering. 2nd edn. New York: John Wiley & Sons.
• Prakash, S. and Sharma, H.D. (1990) Pile Foundations in Engineering Practice. New York: John Wiley & Sons.
• Punmia, B.C., Jain, A.K. and Jain, A.K. (2017) Soil Mechanics and Foundations. 17th edn. New Delhi: Laxmi Publications.
• Saran, S. (2006) Analysis and Design of Substructures: Limit State Design. 2nd edn. New Delhi: Oxford and IBH Publishing.
• Skempton, A.W. (1951) 'The bearing capacity of clays', Proceedings of the Building Research Congress, London, Vol. 1, pp. 180–189.
• Stroud, M.A. (1974) 'The standard penetration test in insensitive clays and soft rocks', Proceedings of the European Symposium on Penetration Testing, Stockholm, Vol. 2.2, pp. 367–375.
• Terzaghi, K. (1943) Theoretical Soil Mechanics. New York: John Wiley & Sons.
• Terzaghi, K. and Peck, R.B. (1948) Soil Mechanics in Engineering Practice. New York: John Wiley & Sons.
• Varghese, P.C. (2014) Foundation Engineering. 2nd edn. New Delhi: PHI Learning.
• Vesic, A.S. (1973) 'Analysis of ultimate loads of shallow foundations', Journal of the Soil Mechanics and Foundations Division, ASCE, 99(SM1), pp. 45–73.

Author's Note: Bearing capacity calculation is one of the oldest problems in soil mechanics, and the methods in this guide represent the consensus of nearly a century of engineering practice. However, all IS codes cited are subject to periodic revision — the reader should verify current editions via the BIS website (bis.gov.in). The worked example in Section 8 is illustrative; every real project requires site-specific investigation and the judgement of a qualified structural and geotechnical engineer. The Studio Matrx Soil Bearing Capacity Estimator implements the methods described here and is intended as a design aid, not as a substitute for professional engineering.

Disclaimer: This article is for informational and educational purposes only. It does not constitute geotechnical or structural engineering advice. Foundation design must be undertaken by qualified professionals based on site-specific investigation and current applicable codes. Studio Matrx, its authors, and its contributors accept no liability for the use or misuse of the information contained in this guide.
